4pair Solid Copper Roll Indoor SF/UTP CAT6 Network Cable 0.56mm 0.57mm 0.58mm

Name: 4pair Solid Copper Roll Indoor SFUTP CAT6 Network Cable 056mm 057mm 058mm
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : SF/UTP CAT6 CABLE

Certification : CE, RoHS, VDE, UL

Place of Origin : China

MOQ : 10 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 305M, 1000FT, Pull Box, Pallet

Conductor : 0.57±0.005mm Solid Bare Copper

Pairs : 4 Pairs

Insulation : 1.18±0.05 mm HDPE

Colors : Blue-White/Blue,Orange-White/Orange

Cross Section : Modified Polyethylene

Shielded 1 : PET Foil

Shielded 2 : Al/PET Foil, Foil Face Out

Shielded 3 : Al_Mg Braiding

Out Jacket : UV-PE , PVC , LSZH

Contact Now

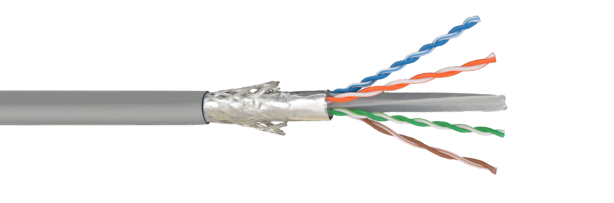

4pair Solid Copper 0.56mm 0.57mm 0.58mm 305meter Roll Indoor Network Internet Cable SF/UTP Cat6 SFTP Cat6


SF/UTP CAT6 CABLE

COMPLIANCE (Reference Standard and Certificates)
· ISO/IEC 11801-1 Ed.1.0
· ANSI/TIA-568-C.2 , ANSI/TIA-568.2-D
· UL444,UL1581,UL1666,IEC60332-1,EN50399

Application Support
· 1000BASE-T , 1000BASE-TX,100BASE-T , 100BASE-TX,100VG-AnyLAN,ATM
· 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

Construction					Electrical Characteristics
Conductor:		0.57±0.005mm Solid Bare Copper			DC Resistance			＜9.38 Ohms/100m @20℃
Pairs:		4 Pairs			DC Resistance unbalance			5% @ 20℃
Insulation:		1.18±0.05 mm HDPE			Mutual Capacitance			5.6 nF/100m
Insulation Colors:		Blue-White/Blue,Orange-White/Orange			Characteristic Impedance			1 - 100 MHz : 100±15 Ohms
		Green-White/Green,Brown-White/Brown						100 - 250 MHz : 100±20 Ohms
Cross Section:		Modified Polyethylene			Max Frequency			250MHz
Shielded 1:		PET Foil			Capacitance Unbalance			330 pF/100m
Shielded 2:		Al/PET Foil, Foil Face Out			NVP(传输速率)			63%
Shielded 3:		Al_Mg Braiding			Delay Skew			≤ 45ns/100m
Out Jacket:		UV-PE , PVC , LSZH
※ Conductor from 0.55mm-0.57mm all can pass Fluke test, the Headroom of 0.57mm is bigger than 0.55mm


Performance Characteristics
Frequency	RL (Min.)	Insertion Loss(Max.)	Propagation Delay (Max.)	Delay Skew(Max.)		NEXT (Min.)	PSNEXT (Min.)		ELNEXT (Min.)	PSELNEXT (Min.)
MHz	dB	dB/100m	ns/100m	ns/100m		dB	dB		dB/100m	dB/100m
1	20.0	2.0	570.0	45.0		74.0	72.0		67.8	64.8
4	23.0	3.8	552.0	45.0		65.0	63.0		55.7	52.7
10	25.0	6.0	545.0	45.0		59.0	57.0		47.8	44.8
16	25.0	7.6	543.0	45.0		56.0	54.0		43.7	40.7
20	25.0	8.5	542.0	45.0		55.0	53.0		41.7	38.7
31.25	23.6	10.7	540.0	45.0		52.0	50.0		37.9	34.9
62.5	21.5	15.4	539.0	45.0		47.0	45.0		31.8	28.8
100	20.1	19.8	538.0	45.0		44.3	42.3		27.8	24.8
200	18.0	29.0	537.0	45.0		39.7	37.7		21.7	18.7
250	17.3	32.8	536.0	45.0		38.0	36.0		19.8	16.8
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Jacket Physical Properties
Jacket
Aging							Cold Bend
	Item		Aging Period		100°24H7D		Cold Period		-20±2°C*4H
			Before Aging		After Aging		Bend Radius		8*Cable O.D.
PVC	Tensile Strength		≥13.5 Mpa		≥12.5 Mpa		No Visible Cracks
	Elongation		≥150 %		≥125 %
LSZH	Tensile Strength		≥10.0 Mpa		≥8.0 Mpa		No Visible Cracks
	Elongation		≥125%		≥100%
PE	Tensile Strength		≥10.0 Mpa		≥8.0 Mpa		No Visible Cracks
	Elongation		≥350 %		≥350 %

P/N			Description
NO.7112221			SF/UTP CAT6 4PR 23AWG COPPER UV-PE ...305M(1000FT)
NO.7112222			SF/UTP CAT6 4PR 23AWG COPPER PVC ...305M(1000FT)
NO. 7112226			SF/UTP CAT6 4PR 23AWG COPPER LSZH ...305M(1000FT)

Product Tags:

Solid Copper CAT6 Network Cable

4pair CAT6 Network Cable

SF/UTP CAT6 Network Cable
