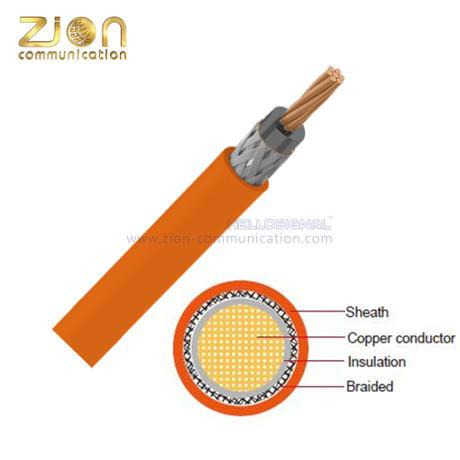

AHFX-BS Automotive Cable Halogen Free Polyolefin

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: AHFXBS Automotive Cable Halogen Free Polyolefin
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Tin plated copper

Insulation : Fluororubber

Braided : Shield tin plated copper

Sheath : Halogen free Polyolefine

Standard Compliance : KIS-ES-1121

Technical Parameters : Operating temperature: –40 °C to +200°C

Contact Now

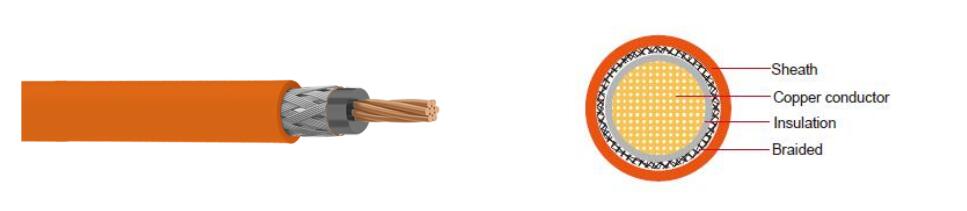

AHFX-BS Automotive Cable
Product Description:
Conductor			Tin plated copper
Insulation			Fluororubber
Braided			Shield tin plated copper
Sheath			Halogen free Polyolefine
Standard Compliance			KIS-ES-1121
Technical Parameters			Operating temperature: –40 °C to +200°C Rated Voltage: 600V
Application:
This Fluororubber insulated single-core cable is used for HEV automobiles.

Zion's Hot Types of AHFX-BS Automotive cable
	Conductor				Insulation		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter Max.		Electrical resistance at 20°C max.	Thickness wall Nom.	Diameter of Core	Diameter Width	Diameter Height	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	mm	Kg/km
1x3	65/0.26	2.40		5.65	4.05	3.55	90.00	5.60	5.30
1x5	65/0.32	3.00		3.72	4.90	4.30	90.00	7.30	6.50
1x8	154/0.26	4.00		2.43	5.90	5.30	90.00	8.30	7.50
1x15	171/0.32	5.30		1.44	7.80	7.20	90.00	10.75	9.85
1x20	247/0.32	6.50		1.00	9.00	8.40	90.00	11.95	11.05
1x25	323/0.32	7.40		0.76	10.60	9.80	90.00	13.50	12.50
1x30	361/0.32	7.80		0.68	11.00	10.20	90.00	13.90	12.90
1x40	494/0.32	9.10		0.52	12.30	11.50	90.00	16.25	15.15
1x50	608/0.32	10.10		0.42	13.75	12.85	90.00	17.70	16.50
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
