Name: AVUHSF Automotive Cable HKMC ES 9111005 Vinyl Insulation
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Annealed stranded copper

Insulation : Vinyl

Shield : Tin coated annealed copper

Sheath : Vinyl

Standard Compliance : HKMC ES 91110-05

Technical Parameters : Operating temperature:–40°C to +135 °C

Contact Now

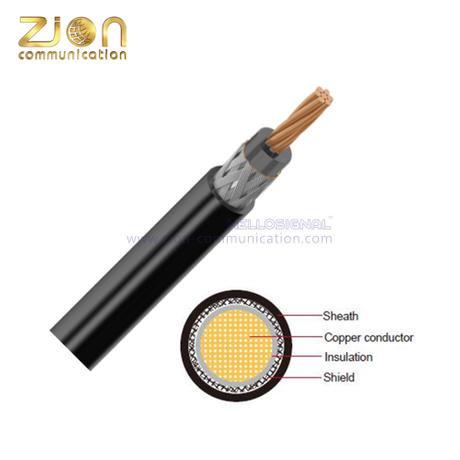

AVUHSF Automotive Cable
Product Description:
Conductor			Annealed stranded copper
Insulation			Vinyl
Shield			Tin coated annealed stranded copper
Sheath			Vinyl
Standard Compliance			HKMC ES 91110-05
Technical Parameters			Operating temperature:–45°C to +135 °C
Application:
This Vinyl insulated single-core cable is used in EPS (Electric power steering) for automobiles.

Zion's Hot Types of AVUHSF Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.		Electrical resistance at 20°C max.	Thickness Wallnom.	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
1x5.0	207/0.18	3.00		3.94	0.80	6.70	7.10	72.00
1x8.0	315/0.18	3.70		2.32	0.80	7.50	7.90	128.00
1x10.0	399/0.18	4.20		1.76	0.90	8.20	8.60	153.00
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
