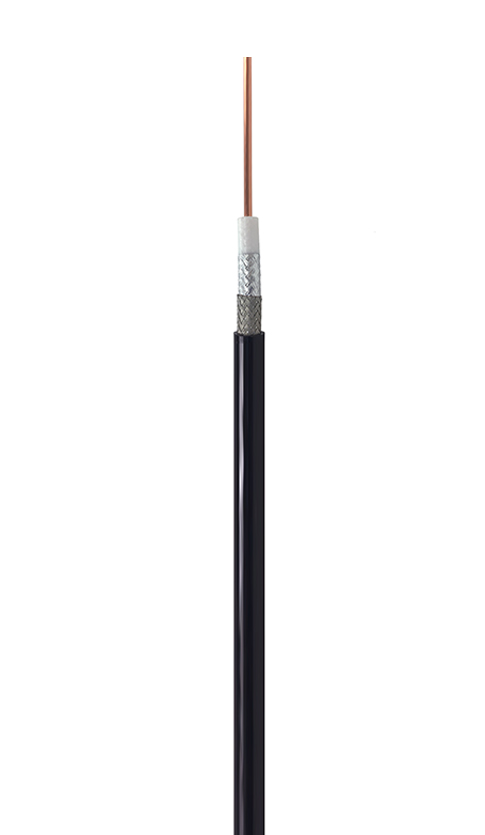

Low loss flexible 240 series 50 Ohm coax cable with PE jacket is rated for a 5.8 GHz maximum operating frequency

Brand Name : Zion communication OR OEM

Model Number : LLC Coax Cable

Certification : ISO, CE, RoHS, UL

Place of Origin : China

MOQ : 1 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Inner Conductor : Bare Copper Wire

Dielectric : Foamed PE

Shield : Bonded Aluminum polyester tape

Outer Conductor : Tinned Copper Braid

Jacket : PE Black

More choice of Jacket : FRPE / PVC / PVC W

Contact Now

LLC 240 BC NO.7101004
Construction Parameters:
Inner Conductor 1.42±0.03mm Bare Copper Wire
Dielectric 3.81±0.15mm Foamed PE
Shield Bonded Aluminum polyester tape
Outer Conductor 4.52mm Tinned Copper Braid
Jacket 6.10±0.2mm PE Black
More choice of Jacket FRPE / PVC / PVC W
Electrical Characteristics:
Capacitance 79.4 pF/m
Low loss flexible 240 series 50 Ohm coax cable with PE jacket is rated for a 5.8 GHz maximum operating frequency
Impedance 50±2 Ω
Velocity of Propagation 83%
Peak Power Rating 5.6 KW
Max.Operating Frequency 6 GHz
Insulation Resistantce >5000 M Ω.km
Shielding Effectiveness > 90 dB
Inner Conductor DC Resistance 10.50 Ω/km
Outer Conductor DC Resistance 12.76 Ω/km
VSWR ≤ (Return loss≥dB)
30MHz-3000MHz 1.20 (20)
Mechanical and Envrionmental Properties:
Cable Bend Radius Installation: 19.1mm
Repeated: 63.5mm
Compressive flat force
Maximum tension 36.3 kg
Bending Moment 0.34 N-m
Flat Plate Crush Stength 0.36 kg/mm
Recommended
Temperature		 Storage: - 70 ℃ to +85℃
Installation: - 40 ℃ to +85℃
Operating: - 40 ℃ to +85℃
Cross Section:

Low loss flexible 240 series 50 Ohm coax cable with PE jacket is rated for a 5.8 GHz maximum operating frequency
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100m) Avg.Power(KW)
30 4.40 1.49
50 5.70 1.15
150 9.90 0.66
220 12.00 0.54
450 17.30 0.38
900 24.80 0.26
1500 32.40 0.20
1800 35.60 0.18
2000 37.70 0.17
2500 42.40 0.15
3000 46.50 0.12
5800 66.80 0.09
Order Informations:
Marking HELLOSIGNAL LLC 240 50 Ohm COAXIAL CABLE ×××M
Package 500M/Wooden Drum, 1000M/Wooden Drum
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
