LLC 100 series bare copper wire low loss coax cable

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LLC 100 series bare copper wire low loss coax cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : LLC Coax Cable

Certification : ISO, CE, RoHS, UL

Place of Origin : China

MOQ : 1 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Inner Conductor : Bare Copper Wire

Dielectric : Foamed PE

Outer Conductor : Tinned Copper Braid

Jacket : PE Black

More choice of Jacket : FRPE / PVC / PVC W

Contact Now

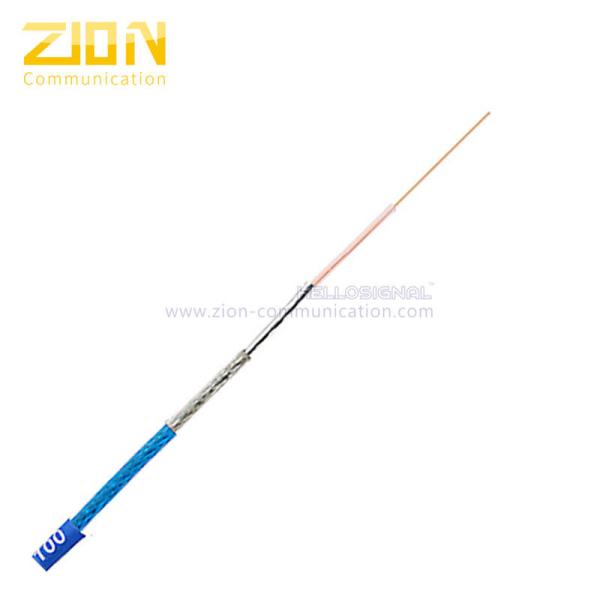

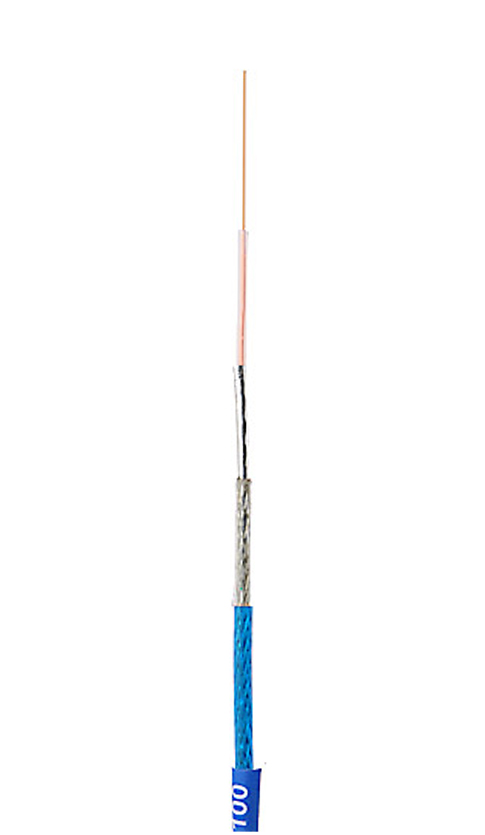

LLC 100 BC NO.7101001

Construction Parameters:
Inner Conductor	0.46±0.03mm Bare Copper Wire
Dielectric	1.52±0.15mm Foamed PE
Shield	Bonded Aluminum polyester tape
Outer Conductor	2.11mm Tinned Copper Braid
Jacket	2.79±0.2mm PE Black
More choice of Jacket	FRPE / PVC / PVC W

Electrical Characteristics:
Capacitance	101.1 pF/m
Impedance	50±2 Ω
Velocity of Propagation	66%
Peak Power Rating	0.6 KW
Max.Operating Frequency	6 GHz
Insulation Resistantce	>5000 M Ω.km
Shielding Effectiveness	> 90 dB
Inner Conductor DC Resistance	106 Ω/km
Outer Conductor DC Resistance	31.2 Ω/km
VSWR ≤ (Return loss≥dB)
30MHz-3000MHz	1.20 (20)

Mechanical and Envrionmental Properties:
Cable Bend Radius	Installation: 6.4mm
	Repeated: 25.4mm
Compressive flat force	0.7 kg/mm²
Maximum tension	6.8 kg
Bending Moment	0.014 N-m
Flat Plate Crush Stength	0.18 kg/mm
Recommended Temperature	Storage:	- 70 ℃ to +85℃
	Installation:	- 40 ℃ to +85℃
	Operating:	- 40 ℃ to +85℃




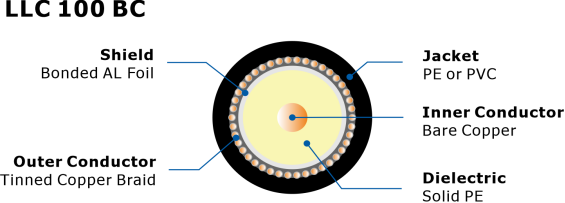

Cross Section:


Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100m)		Avg.Power(KW)
30	12.90		0.23
50	16.70		0.18
150	29.40		0.10
220	35.80		0.08
450	51.90		0.06
900	74.90		0.05
1500	98.70		0.04
1800	109.00		0.03
2000	115.50		0.03
2500	130.60		0.02
3000	143.80		0.02
5800	210.30		0.01

Order Informations:
Marking	HELLOSIGNAL LLC 100 50 Ohm COAXIAL CABLE ×××M
Package	500M/Wooden Drum, 1000M/Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
Whatsapp/WeChat	0086 18268009191
Email	info@zion-communication.com
