Low Loss Flexible 195 Indoor / Outdoor Rated Coax Cable Double Shielded with Black PE Jacket By The Foot

Name: Low Loss Flexible 195 Indoor Outdoor Rated Coax Cable Double Shielded with Black PE Jacket By The Foot
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : LLC Coax Cable

Certification : ISO, CE, RoHS, UL

Place of Origin : China

MOQ : 1 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Inner Conductor : Bare Copper Wire

Dielectric : Foamed PE

Shield : Bonded Aluminum polyester tape

Jacket : PE Black

More choice of Jacket : FRPE / PVC / PVC W

Contact Now

LLC 195 BC NO.7101002

Construction Parameters:
Inner Conductor	0.94±0.03mm Bare Copper Wire
Dielectric	2.79±0.15mm Foamed PE
Shield	Bonded Aluminum polyester tape
Outer Conductor	3.53mm Tinned Copper Braid
Jacket	4.95±0.2mm PE Black
More choice of Jacket	FRPE / PVC / PVC W

Electrical Characteristics:
Capacitance	83.3 pF/m
Impedance	50±2 Ω
Velocity of Propagation	80%
Peak Power Rating	2.5 KW
Max.Operating Frequency	6 GHz
Insulation Resistantce	>5000 M Ω.km
Shielding Effectiveness	> 90 dB
Inner Conductor DC Resistance	24.9 Ω/km
Outer Conductor DC Resistance	16.1 Ω/km
VSWR ≤ (Return loss≥dB)
30MHz-3000MHz	1.20 (20)

Mechanical and Envrionmental Properties:
Cable Bend Radius	Installation: 12.7mm
	Repeated: 50.8mm
Compressive flat force
Maximum tension	18.2 kg
Bending Moment	0.27 N-m
Flat Plate Crush Stength	0.27 kg/mm
Recommended Temperature	Storage:	- 70 ℃ to +85℃
	Installation:	- 40 ℃ to +85℃
	Operating:	- 40 ℃ to +85℃




Cross Section:


Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100m)		Avg.Power(KW)
30	6.50		0.78
50	8.40		0.60
150	14.60		0.35
220	17.70		0.29
450	25.60		0.20
900	36.50		0.14
1500	47.70		0.11
1800	52.50		0.10
2000	55.50		0.09
2500	62.40		0.08
3000	67.50		0.08
5800	93.00		0.05

Order Informations:
Marking	HELLOSIGNAL LLC 195 50 Ohm COAXIAL CABLE ×××M
Package	500M/Wooden Drum, 1000M/Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
Whatsapp/WeChat	0086 18268009191
Email	info@zion-communication.com

Low Loss Flexible 195 Indoor / Outdoor Rated Coax Cable Double Shielded with Black PE Jacket By The Foot Manufactures

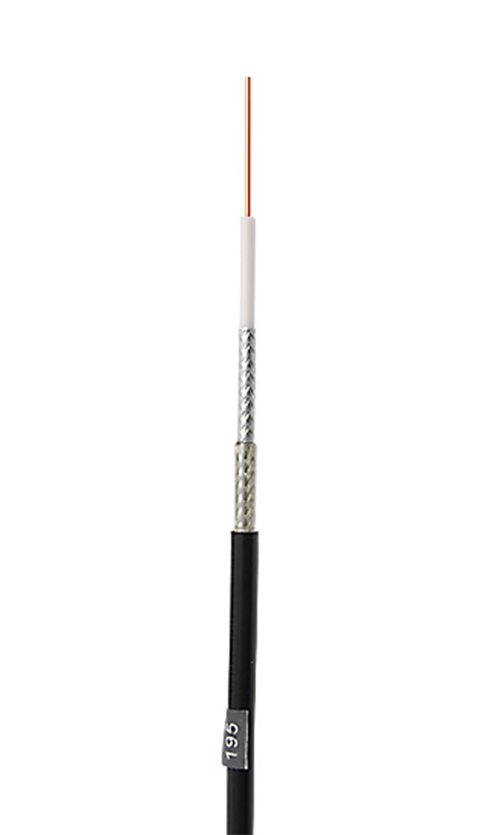

Low Loss Flexible 195 Indoor / Outdoor Rated Coax Cable Double Shielded with Black PE Jacket By The Foot Images
