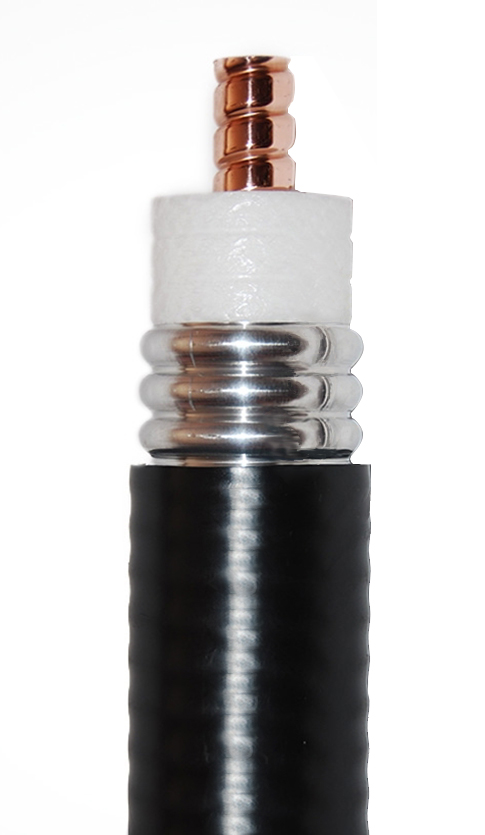

1-5/8" Smooth Copper Tube with Annular Corrugated Aluminum Tube RF Corrugated 50 ohm coaxial cable

Name: 158quot Smooth Copper Tube with Annular Corrugated Aluminum Tube RF Corrugated 50 ohm coaxial cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : RF Corrugated Coax Cable

Certification : ISO, CE, RoHS, UL

Place of Origin : China

MOQ : 1 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Inner Conductor : Smooth Copper Tube

Insulation : Foamed PE

Outer Conductor : Annular Corrugated Aluminum Tube

Jacket : PE, Black

Peak Power Rating : 205 KW

Peak Voltage : 4.3 KV

Contact Now

1-5/8" AL RF Corrugated 50 ohm coaxial cable NO.7101115

Construction Parameters:
Inner Conductor	17.30±0.15mm Corrugated Copper Tube
Insulation	42.50±0.30mm Foamed PE
Outer Conductor	46.50±0.20mm Annular Corrugated Aluminum Tube
Jacket	49.50±0.30mm PE, Black
Jacket Thickness	＞1.30mm
Application

Electrical Characteristics:
Capacitance	75 pF/m
Impedance	50 Ω
Velocity of Propagation	0.88
Peak Power Rating	310 KW
Peak Voltage	3.1 KV
Insulation Resistantce	>10000 MΩ.km
Insulation Voltage	15 KV
Inner Conductor DC Resistance	1.50 Ω/km
Outer Conductor DC Resistance	0.52 Ω/km
VSWR
800MHz-1000MHz	1.15
1700MHz-2200MHz	1.2
2200MHz-2500MHz	1.2


Mechanical and Envrionmental Properties:
Bending Radius (Single Bend)	300 mm
Bending Radius (Repeated Bend)	510 mm
Operating Temp Range	-55 to +85 ℃
Cable Diamensions	49.50±0.30mm

Attenuation(20℃):
Frequency (MHZ)	Attenuation (dB/100m)	Average Power(KW)
200	1.05	11.80
450	1.59	7.46
800	2.29	5.33
900	2.39	4.97
1000	2.58	4.69
1500	3.22	4.97
1800	3.73	3.27
2000	3.97	3.05
2200	4.27	2.87
2500	4.62	2.37

Order Informations:
Marking	HELLOSIGNAL 1 5/8" AL RF COAXIAL CABLE ××× M
Package	Inquired Length on Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

1-5/8" Smooth Copper Tube with Annular Corrugated Aluminum Tube RF Corrugated 50 ohm coaxial cable Manufactures

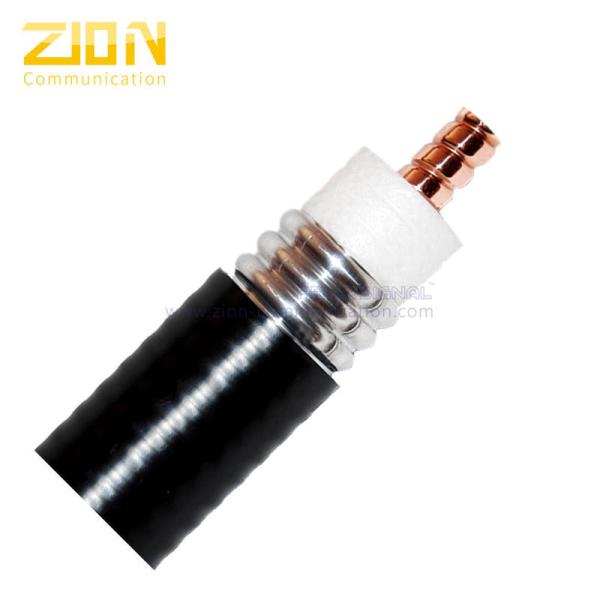

1-5/8" Smooth Copper Tube with Annular Corrugated Aluminum Tube RF Corrugated 50 ohm coaxial cable Images
