1-1/4" RF Corrugated 50 ohm coaxial cable for Telecom

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 114quot RF Corrugated 50 ohm coaxial cable for Telecom
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : RF Corrugated Coax Cable

Certification : ISO, CE, RoHS, UL

Place of Origin : China

MOQ : 1 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Inner Conductor : Copper Clad Aluminum Wire

Insulation : Foamed PE

Outer Conductor : Annular Corrugated Copper Tube

Jacket : PE, Black

Peak Power Rating : 205 KW

Peak Voltage : 4.3 KV

Contact Now

1-1/4" RF Corrugated 50 ohm coaxial cable NO.7101112

Construction Parameters:
Inner Conductor	13.10±0.10mm Smooth Copper Tube
Insulation	32.30±0.25mm Foamed PE
Outer Conductor	35.80±0.25mm Annular Corrugated Copper Tube
Jacket	38.80±0.30mm PE, Black
Jacket Thickness	＞1.20mm
Application

Electrical Characteristics:
Capacitance	76 pF/m
Impedance	50 Ω
Velocity of Propagation	88%
Peak Power Rating	205 KW
Peak Voltage	4.3 KV
Insulation Resistantce	>10000 MΩ.km
Insulation Voltage	10.0 KV
Inner Conductor DC Resistance	1.12 Ω/km
Outer Conductor DC Resistance	0.95 Ω/km
VSWR ≤
800MHz-1000MHz	1.13
1700MHz-2500MHz	1.15
2500MHz-3000MHz	1.20


Mechanical and Envrionmental Properties:
Bending Radius (Single Bend)	150 mm
Bending Radius (Repeated Bend)	380 mm
Operating Temp Range	-40 to +85 ℃
Cable Diamensions	38.80±0.30mm

Attenuation(20℃):
Frequency (MHZ)	Attenuation (dB/100m)	Average Power (KW)
200	1.19	8.81
450	1.92	5.41
800	2.67	3.91
900	2.86	3.72
1000	3.04	3.51
1500	4.20	2.85
1800	4.28	2.41
2000	4.48	2.33
2200	4.76	2.21
2500	5.15	2.03
2700	5.73	1.74

Order Informations:
Marking	HELLOSIGNAL 1 1/4" RF COAXIAL CABLE ××× M
Package	Inquired Length on Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

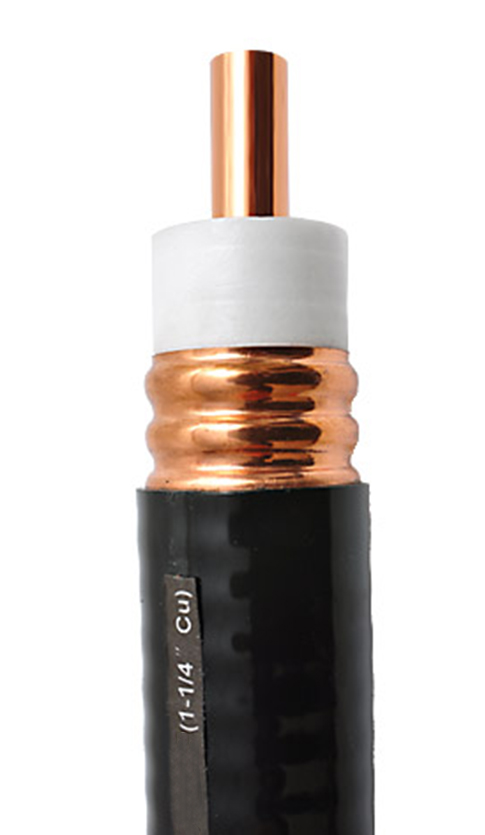

1-1/4" RF Corrugated 50 ohm coaxial cable for Telecom Images
