20AWG Bare Copper Communication CCTV Cable RG59/U 2C power coaxial cable

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 20AWG Bare Copper Communication CCTV Cable RG59U 2C power coaxial cable
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CCTV SURVEILLANCE CABLE

Certification : UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 500FT, 1000FT Wooden Reel or Spool in Box

Conductor : Bare Copper

Dielectric : Foam FEP

Shield : BC-Braid(95%)

Jacket : PVC-CMR

Power Wire Conductor : BC

Power wire Diameter of insulation : PVC-CMR (Red,Black)

Contact Now

RG59/U +2C18AWG CMR Common 75 Ohm CCTV coaxial Cable NO.7102025


Construction Parameters:
Inner Conductor	0.032"/0.81mm/20AWG Bare Copper
Dielectric	0.144"/3.66±0.05mm Foamed Polyethylene
Shield	0.12mmBC-Braid(95%)
Jacket	0.236"/6.00±0.1mm PVC-CMR
Power Wire Conductor	2x18AWG/(7*0.38mm) BC
Power wire Diameter of insulation	0.075"/1.90mm PVC-CMR (Red,Black)
Jacket	9.5mmPVC-CMR
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5 Ω/km (10.3Ω/kft)
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5 Ω/km (10.3Ω/kft)
Capacitance	52 ±3 pF/m 17±0.3 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 75℃
Cable diamensions	9.5mm

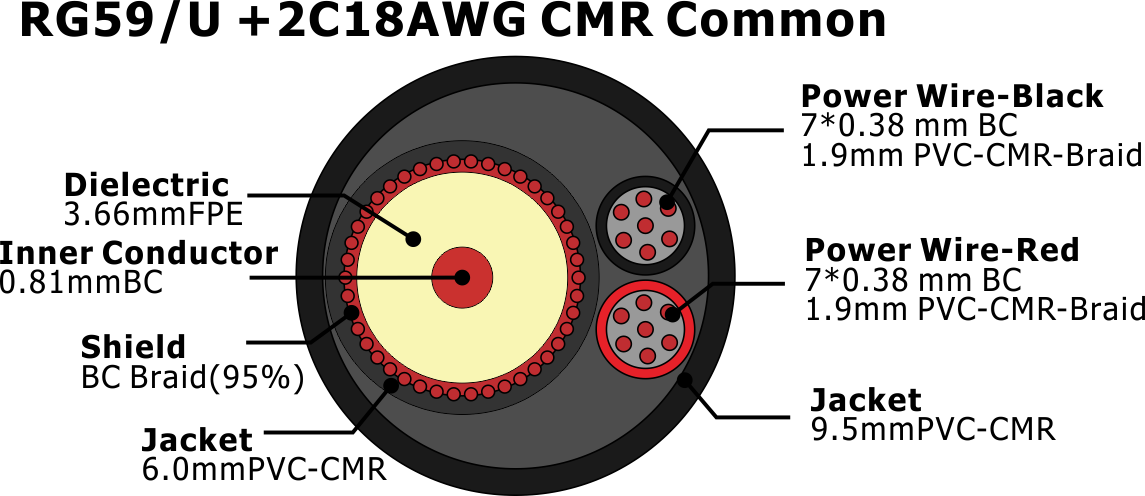

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Order Informations:
Marking	HELLOSIGNAL RG59U +2C18AWG CMR Common CCTV COAXIAL CABLE 7102025 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM

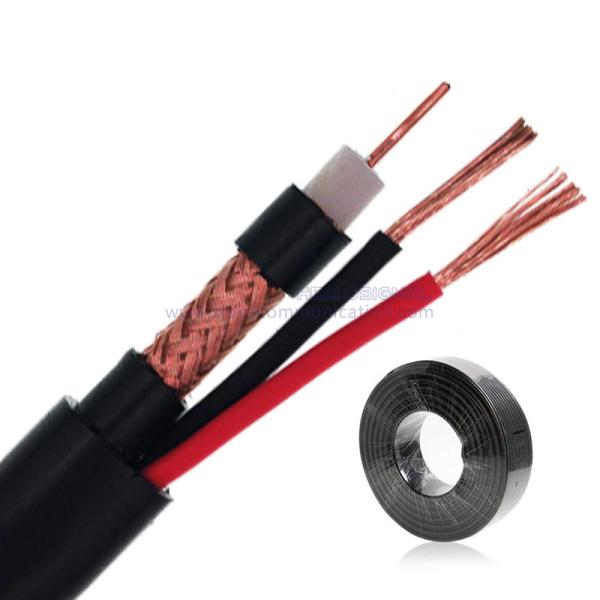

20AWG Bare Copper Communication CCTV Cable RG59/U 2C power coaxial cable Images
