Security System RG59/U 2C18AWG CMP Common Coaxiak Cable 305M With Power Camera Cable

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Security System RG59U 2C18AWG CMP Common Coaxiak Cable 305M With Power Camera Cable
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CCTV SURVEILLANCE CABLE

Certification : UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 500FT, 1000FT Wooden Reel or Spool in Box

Conductor : Bare Copper

Dielectric : Foam FEP

Shield : BC-Braid(95%)

Jacket : PVC-CMP

Power Wire Conductor : BC

Power wire Diameter of insulation : PVC-CMP (Red,Black)

Contact Now

RG59/U +2C18AWG CMP Common 75 Ohm CCTV coaxial Cable NO.7102026


Construction Parameters:
Inner Conductor	0.032"/0.81mm/20AWG Bare Copper
Dielectric	3.43mmFoam FEP
Shield	0.12mmBC-Braid(95%)
Jacket	0.201"/5.10±0.1mm PVC-CMP
Power Wire Conductor	2x18AWG/(7*0.38mm) BC
Power wire Diameter of insulation	0.063"/1.60mm PVC-CMP (Red,Black)
Jacket	7.9mmPVC-CMP
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5 Ω/km (10.3 Ω/kft)
Inner Conductor Resistance	The Max. at 20℃ shall be < 33.5 Ω/km (10.3 Ω/kft)
Capacitance	52 ±3 pF/m 17±0.3 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 75℃
Cable diamensions	7.9mm

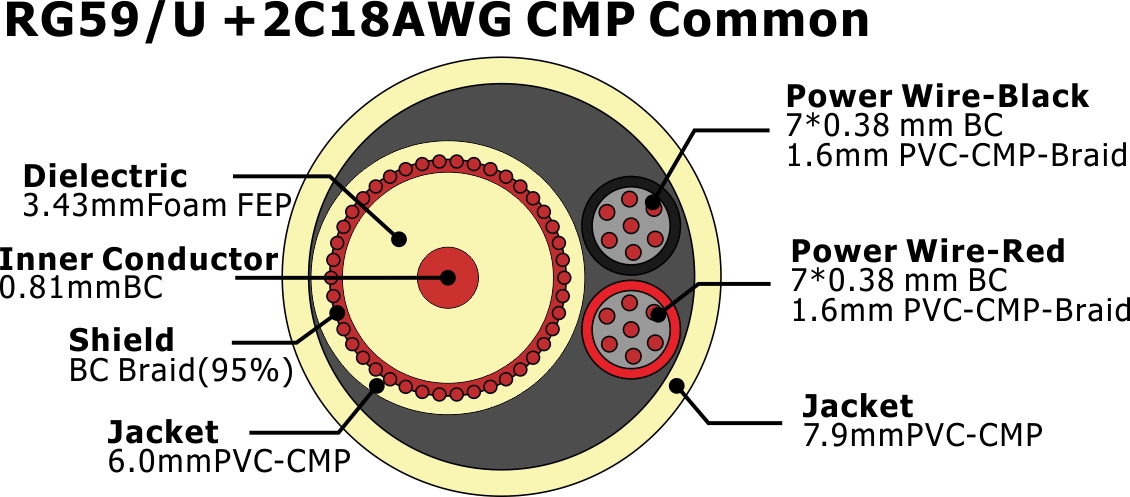

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.34	1.11
10	1.05	3.44
100	3.60	11.80
200	5.20	17.05
400	7.70	25.25
700	10.80	35.41
900	12.40	40.66
1000	13.20	43.28









Order Informations:
Marking	HELLOSIGNAL RG59U +2C18AWG CMP Common CCTV COAXIAL CABLE 7102026 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM

Security System RG59/U 2C18AWG CMP Common Coaxiak Cable 305M With Power Camera Cable Images
