JB-Y(St)Y Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable

Name: JBYStY Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : JB

Certification : UL, ETL, CE,CPR, RoHS

Place of Origin : China

MOQ : 10 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 300M, Wooden Reel, Carton

Conductor : Bare Copper, Solid

Insulation : PVC T12(Y12)

Identification : Colored DIN VDE 0815

Separator : Polyester Foil

Drain Wire : Tinned Copper, Solid

Shield : Aluminum/PET Foil

Contact Now

JB-Y(St)Y \| J-Y(St)Y
Technical Data and Standards
Conductor:		Bare Copper, Solid
Conductor standard:		EN 60228 CI.1
Insulation:		PVC T12(Y12)
Insulation Standard:		DIN VDE 0207
Identification:		Colored DIN VDE 0815
Separator:		Polyester Foil
Drain Wire		Tinned Copper, Solid
Shield:		Aluminum/PET Foil
Out Jacket:		PVC TM2(YM2)
Fire behaviour		IEC 60332-1-2
※ J- Installation Cable \| B-Fire alarm \| Y-PVC insulation \| (St)-Electrostatic Screen \| Y-PVC Jacket
COMPLIANCE (Reference Standard and Certificates)
· Conductor: EN 60228 CI.1
· Insulation: EN 50363-3 \| Jacket: EN50363-4-1
· Fire behaviour: IEC 60332-1-2

Application Support
· These cables are designed for signal transmission in fire detection systems.
· For fixed installation on and under plaster,in dry and damp rooms but also in the open air for fixed installation on outer walls of buildings.
Technical Data of conductor
Diameter(mm)		0,80	1,00	1,13	1,50
Section(mm²)		0,50	0,80	1,00	1,80
Cond. Resistance (ohm/km)		34,50	22,00	17,20	9,80
Cond. Loop Res.(ohm/km)		69,00	44,00	34,40	19,60
Electrical Characteristics
Peak Operating Voltage		300 V
Operating Voltage Uo		500 V
Test Voltage		800 V
Insulation Resistance		＞100M ohm/km
PHYSICAL PROPERTIES
Bend Radius(Min)		10×OD of Jacket
Operating Temperature		-15 ℃ to 70 ℃

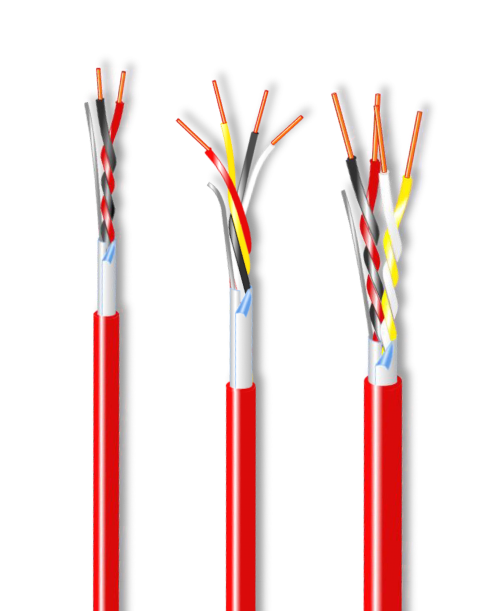

Construction
Item	Inner Conductor			Insulation		Shield	Jacket
	Cores	OD (mm)	Section (mm²)	OD (mm)	Color		OD (mm)
JBYSY0102080	1×2	0,80	0,50	1,55	R/B	PET Foil Drain Wire AL/PET Foil	4,30
JBYSY0104080	1×4	0,80	0,50	1,55	R/B/W/Y		5,10
JBYSY0202080	2×2	0,80	0,50	1,55	R/B/W/Y		6,50
JBYSY01020100	1×2	1,00	0,80	1,90	R/B		5,20
JBYSY0102113	1×2	1,13	1,00	45.0	R/B		5,60
JBYSY0102150	1×2	1,50	1,80	42.0	R/B		7,40
※ R:RED B:BLACK W:WHITE Y:YELLOW
※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm \| Jacket:±0,30 mm
Order Informations
Marking		HELLOSIGNAL JB-Y(ST)Y N×N×N Fire alarm Cable ...300M(or Per customer's request)

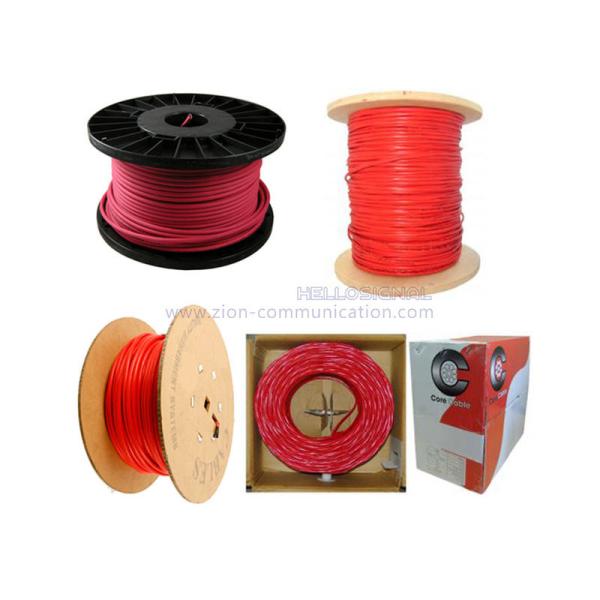

Inner Package		300m/Spool(or Per customer's request)
Outer Package		Carton, Pallet (or Per customer's request)
Delivery time		Normally 25 days after received the deposit.
Brand		HELLOSIGNAL® OR OEM
