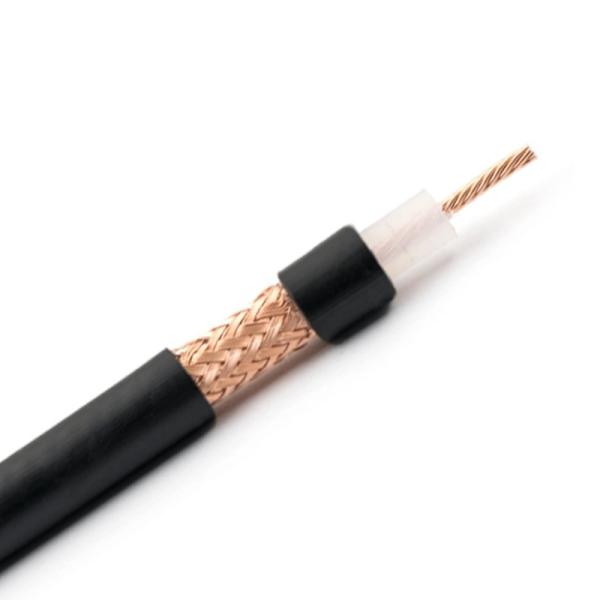

Name: 7C2V 75ohm CCTV Cable Copper Wire 7C2V Coaxial Cable UL CPR ETL Certification
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : JIS C CCTV Coaxial Cable

Certification : ISO, UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 305M, 1000FT, Wooden Reel, Carton

Conductor : BC

Insulation : SPE

Shield : 8×24 BC Braid(L=45)

Jacket : PVC

Color : Black, White

Package : 305M, 1000FT, Wooden Reel, Carton

Contact Now

7C-2V 75 Ohm CCTV coaxial Cable NO.7100909



Construction Parameters:
Inner Conductor	7×0.40mmBC
Dielectric	7.3mmSPE
Shield	0.18mm×8×24 BC Braid(L=45)
Jacket	10.4±0.5mmPVC
Jacket Thickness	1.1mm
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be<20.7Ω/km

Capacitance	67±3 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 20dB
Velocity of Propagation
Sparker Test (VAC)	1

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 65℃
Cable diamensions

Cross Section















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
10		1.70
30		2.90
72		4.60
88		5.00
90		5.10
135		6.20
180		7.20
220		8.00
270		8.80
440		11.30
750		14.60
770		14.80
1300		19.20
2400		26.10

Order Informations:
Marking	HELLOSIGNAL 7C-2V CCTV COAXIAL CABLE 7100909 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
