Non Metallic 80M 1 - 12 Core Single Mode Fiber Optic Cable With Frp Strength Member

Non-Metallic Outdoor ASU Span 80M 1-12 Core Single Mode Fiber Optic Cable With Frp Strength Member

ASU FTTH Drop Fiber Optic Cables Self-Supporting FRP Strength Tube 7.0/8.0 HDPE

Introduction

The typical ASU Self-supporting Drop Optical cable Includes Central Tubes with optical fibre(s),Two Glass FRP as the strength members,a LSZH Sheath is extruded outside.

Features

Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable

Product Series

• GJXFH: FRP Strength Member+2.0*3.0LSZH
• GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
• GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
• GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
• GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
• GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
• GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
• GYFJU: Aramid Yarn Strength Round Sheath LSZH
• GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
• FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
• ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
• GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
• GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

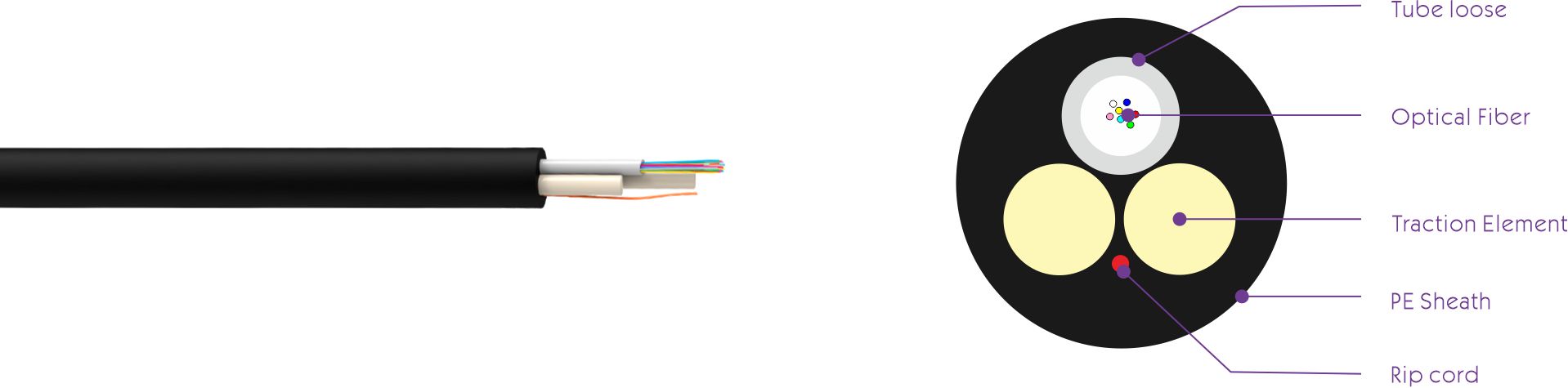

Cross Section

Technical Characteristics

ASU-80 Diametermm:6.8(2.0tube)

ASU-80 Weight(kg/km): 45

ASU-80 Tensile strengthLong/short term(N):300/600

ASU-80 CrushLong/short term(N/100mm):300/600

ASU-80 Bending RadiusStatic/Dynamic:10D/20D

ASU-120 Diametermm:7.8(2.5tube)

ASU-120 Weight(kg/km): 60

ASU-120 Tensile strengthLong/short term(N): 300/600

ASU-120 CrushLong/short term(N/100mm): 300/600

ASU-120 Bending RadiusStatic/Dynamic:10D/20D

Environmental Characteristics

Transport/storage temperature: -20℃~70℃

Standard length:1000m;Other length availabe
