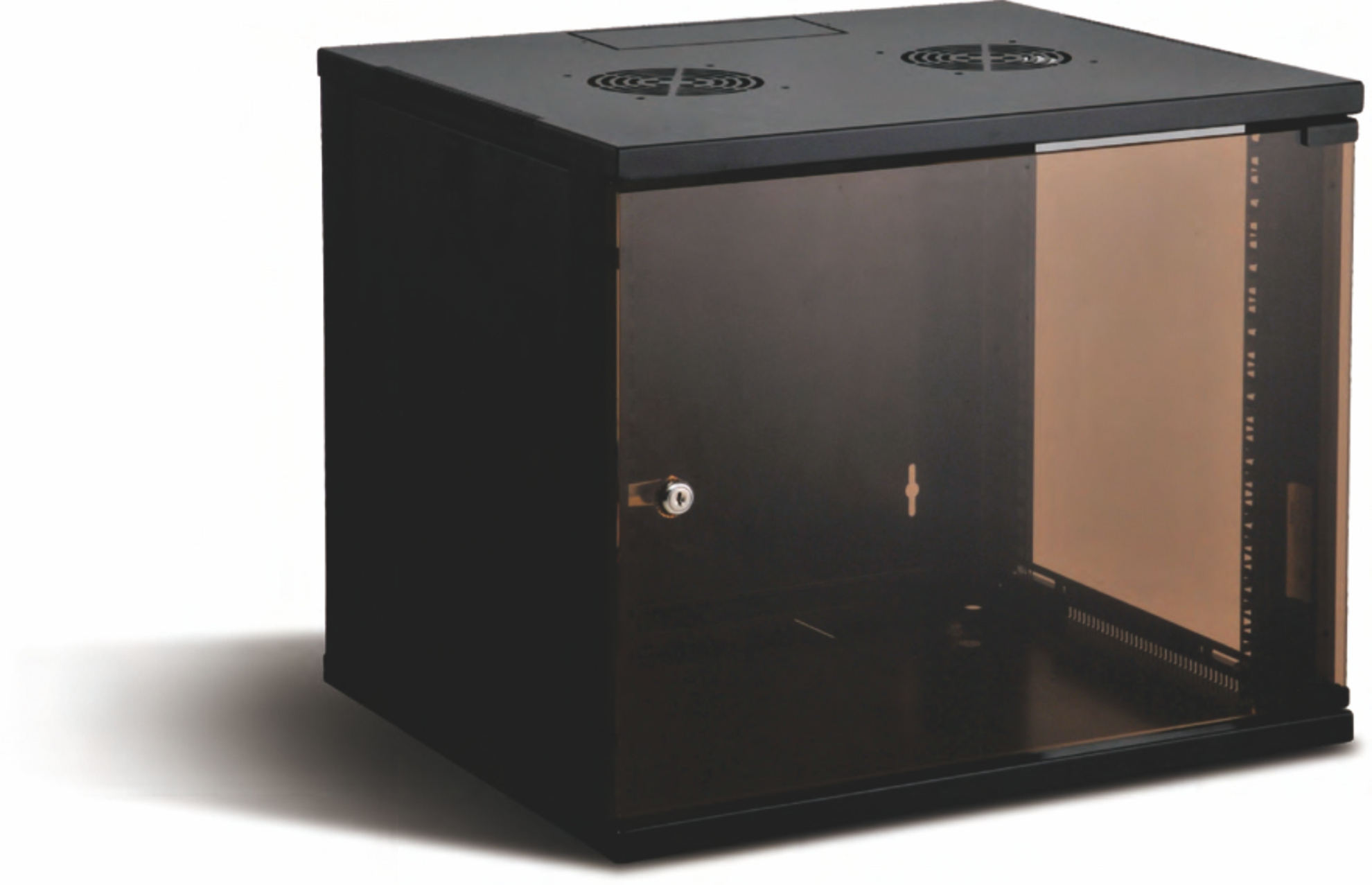

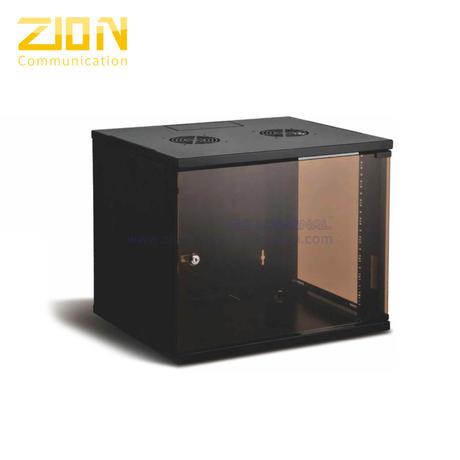

SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

Brand Name : Zion communication OR OEM

Model Number : Data Center Equipment

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T, L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 10 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Model : Wall Mount Rack Cabinet

Bnad : Zion Communication

Cord : ZCSQ

Color : Black,Grey

Loading Capacity : 50kg

Contact Now

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

SQ Wall Box
Technical Data
Materials: SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
· SPCC Cold Rolled Steel; · others: 1.0mm
· Thickness: 19" rails: 1.2/1.5mm
Colour:
· ZCSQ ■■■■ ■■0■■: RAL7035
· ZCSQ ■■■■ ■■1■■: RAL9004
Loading Capacity:
· Static loading: 50KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
May Installs The Fitting:
SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

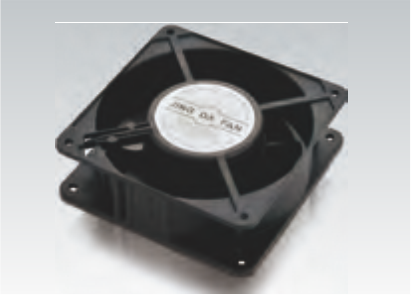

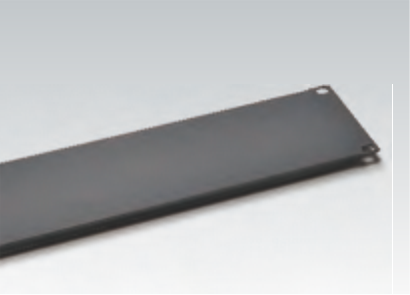

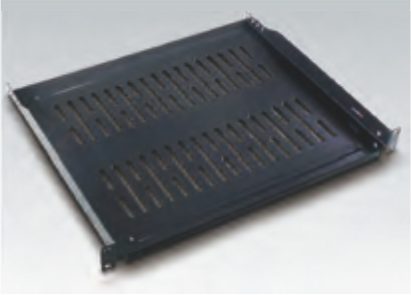

· Circular threading hole (Ø50MM) · Cantilever shelf · Blanking panel · Cooling fan

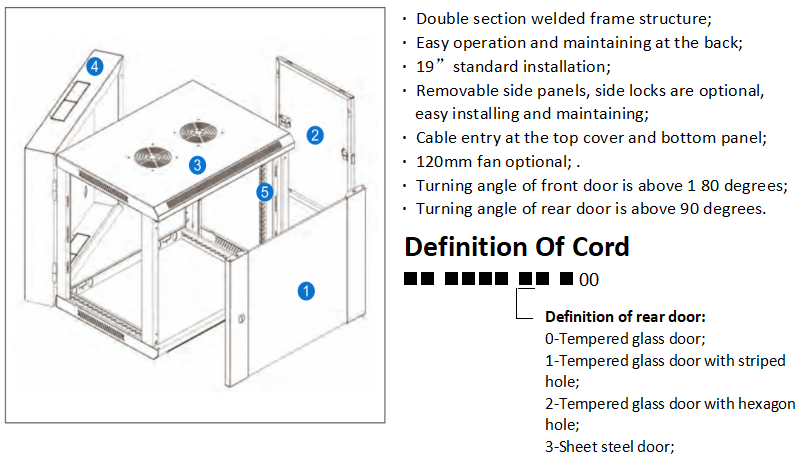

Feature
SQ Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
Main Part
S/N Specification Qty Material Surface Finish Remark
1 Frame 1 SPCC t1.0 Powder coated ·····
2 Side panel 2 SPCC t1.0 Powder coated ·····
3 Front door 1 5MM toughed glass
door/SPCC t1.2		 ····· ·····
4 19" rails 4 SPCC t1.2/1.5 Powder coated <15U Thinkness : 1.2mm
>= 15U Thinkness:1.5mm
A M6 screw&nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ·····
Order Information:
Model No. RU Width
(mm)		 Depth(D)
(mm)		 Height(H)(mm) Packing dimension(mm)
ZCSQ.5406.SQSS 6 540 450 315 560*470*330
ZCSQ.5606.SQSS 600 560*620*330
ZCSQ.5409.SQSS 9 540 450 450 560*470*470
ZCSQ.5609.SQSS 600 560*620*470
ZCSQ.5412.SQSS 12 540 450 580 560*470*600
ZCSQ.5612.SQSS 600 560*620*600
ZCSQ.5415.SQSS 15 540 450 715 560*470*730
ZCSQ.5615.SQSS 600 560*620*730
ZCSQ.5420.SQSS 20 540 450 935 560*470*950
ZCSQ.5425.SQSS 25 600 1160 560*470*1180
