Name: Cat6A UTP 8P8C RJ45 Connector Plug Accessories Polycarbonate
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Data Center Equipment

Certification : ISO, CE, RoHS, UL

Place of Origin : CHINA

MOQ : 1,000 PCS

Payment Terms : T/T, L/C

Supply Ability : 30,000 PCS / Month

Delivery Time : Normally 10 workingdays

Packaging Details : 1 PC/Plastic Bag, PCS/Carton

Model : Modul Plug / Connectors

Bnad : Zion Communication

Cords : 7024014

Categories : Cat6 Plug

Contact Now

Cat6A UTP 8P8C RJ45 Connector , Plug Accessories , From China Manufacturer - Zion Communiation

More detail please visit:


7024014 \| ZC-MP6A88UR
Modular Plug , 8P/8C, CAT6A, round, 8-position, crystal head,100/bag

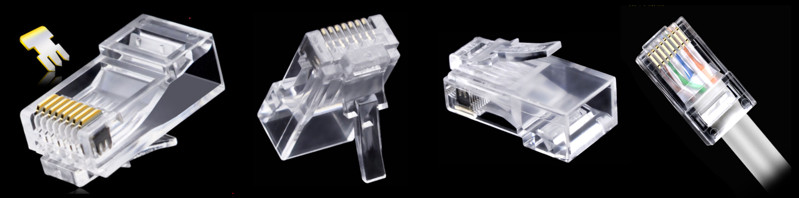

Physical photo

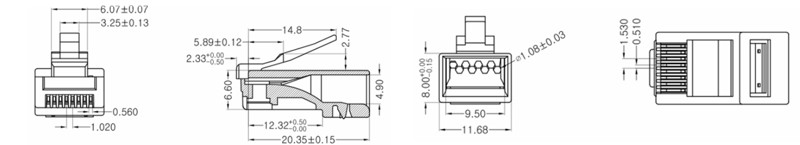

Dimensional Structure

Electrical Specifications
ANSI/TIA Category				5
Current Rating,maximum				0.75 A
Insulation Resistance,minimum				500 mOhm
Safety Voltage Rating				150 Vac
Pass fluke test				Compliant

General Specifications
Cable Type				Round
Interface				RJ45
Application
Operating Temperature				-40℃ to +85℃
Relative Humidity				Up to 93%, non-condensing
Package Quantity				100
Packaging Type				Bag \| Box \| Carton
Positions/loaded Contacts				8P/8C

Mechanical Specifications
Conductor Gauge				Solid/Stranded 26-23 AWG
Contact Base Material				Phosphor bronze
Contact Plating Material				Gold
Contact Plating Thickness				50μ
Material Type				PC = Polycarbonate
Plug Insertion Life,minimum				750 times



Regulatory Compliance/Certifications
RoHS 2011/65/EU				Compliant

Order Informations
Label				Can be customized
Delivery time				Normally 15 working days
Brand				Hellosignal ®
OEM				Yes
Email				info@zion-communication.com
